Product Description:
Hotek Servo Motor Series
(Outer Diameter: 40/60/80/130mm)
Designed for high-precision industrial automation, these motors feature high-performance rare-earth permanent magnets and closed-loop control technology, delivering:
-
Ultra-low inertia
-
Fast response
-
Wide speed ratio
Flexible Customization:
Core Advantages Comparison Table :
| Feature | Hotek Servo Motor | Conventional Servo Motor |
| Precision | ±0.01° (Closed-loop) | ±0.1° (Open-loop) |
| Response Time | <5ms (Full frequency band) | >10ms |
| Energy Efficiency | IE4 (30%+ energy saving) | IE2 |
| Customization | Flexible (Voltage/Shaft/Encoder) | Standard models only |
| Protection Rating | IP65 (IP67 optional) | IP54 |
Specifications :
| Diameter (mm) | 40 | 60 | 80 | 130 |
| Voltage(V) | 24-48 | 24-310 | 36-310 | 48-310 |
| Power(W) | 50-100 | 100-600 | 500-1K | 1K-3K |
| Torque (Nm) | 0.32-0.16 | 0.32-1.90 | 2.38-2.40 | 4.7-20 |
Typical Application Fields :
-
Industrial Automation: Robotic arms, CNC machines, injection molding machines .
-
Logistics Equipment: Sorting lines, AGV drive wheels .
-
Medical Instruments: CT scanner rotation modules, surgical robots .
-
New Energy: Solar panel tracking systems, battery winding machines .
1. "Compatible with gearboxes (22mm-65mm)"

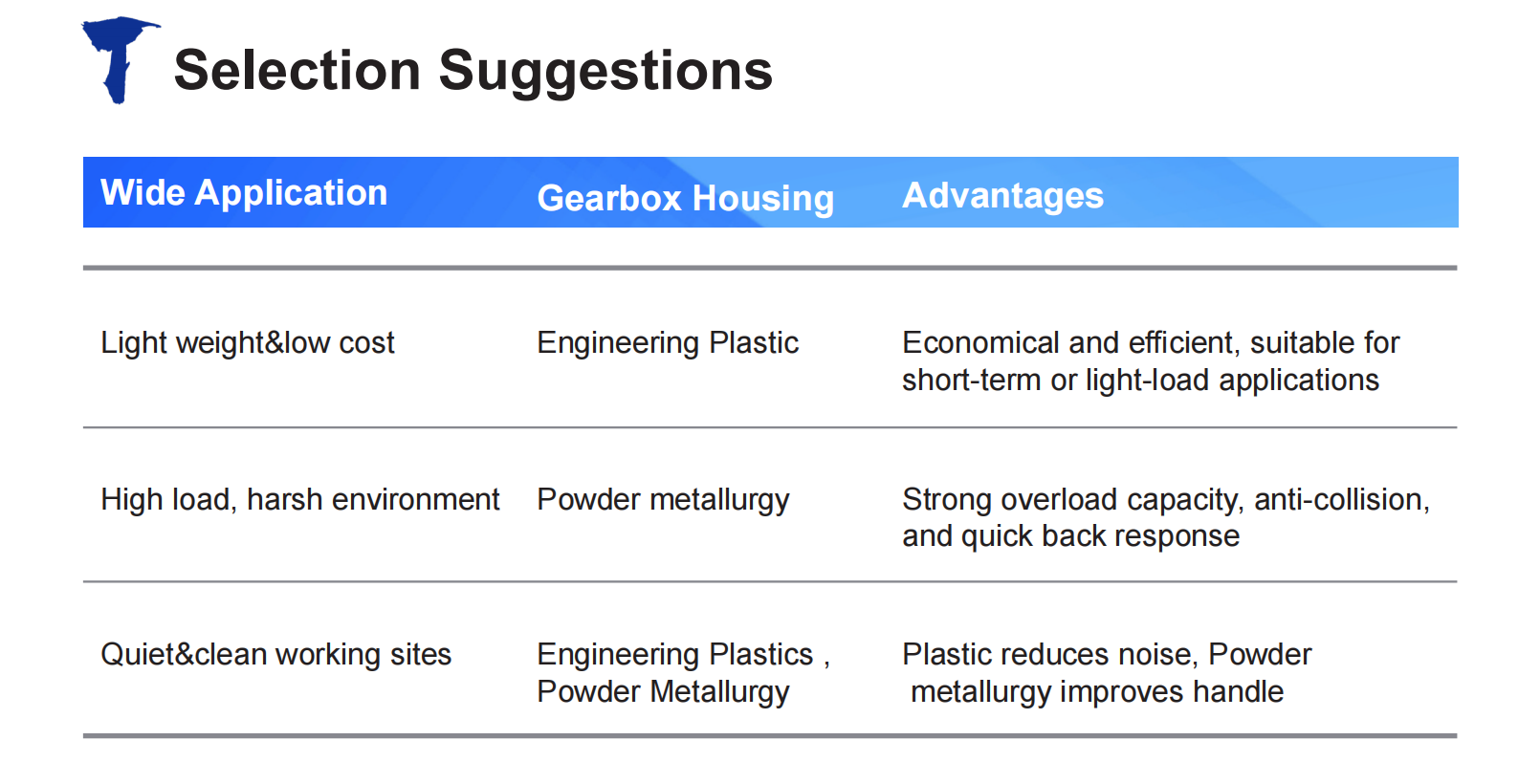

2. "Housings: powder metallurgy, zinc alloy, or engineering plastics"
3. "Custom designs supported"
Servo Motor consists of a DC Motor, a Gear system, a position sensor, and a control circuit. The DC motors get powered from a battery and run at high speed and low torque. The Gear and shaft assembly connected to the DC motors lower this speed into sufficient speed and higher torque. The position sensor senses the position of the shaft from its definite position and feeds the information to the control circuit. The control circuit accordingly decodes the signals from the position sensor and compares the actual position of the motors with the desired position and accordingly controls the direction of rotation of the DC motor to get the required position.
When it comes to quality aspects, Hetai was qualified by ISO Certificate, CE, and Rohs. The product quality has also been recognized by many customers.
Hetai is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
